Workspace ONE UEM provides a collection of APIs that allow IT infrastructures and third-party applications to use product functionalities. Leveraging REST-based APIs offers several benefits for enterprises, including eliminating cost and time spent developing applications in-house. This post will demonstrate how you can authenticate and access Workspace ONE APIs.

This post is most appropriate for the following audiences:

• Anyone new to VMware Workspace ONE
• Anyone new to VMware Workspace ONE REST APIs
• Anyone with basic PowerShell expertise

About Workspace ONE API

Workspace ONE UEM API supports multiple types of authentications. The authentication credentials are sent in the Authorization API request header, including:

• Basic authentication
• Certificate authentication
• OAuth authentication (recommended)

To access detailed API documentation, navigate to the Workspace ONE UEM API help page using the following:

• https://[your_console_domain]/api/help

To find your REST API URL, navigate to System Settings.

API key

All types of API authentication require an additional API key generated by an administrator to be sent with the request. This key is sent as “aw-tenant-code” in the request header.

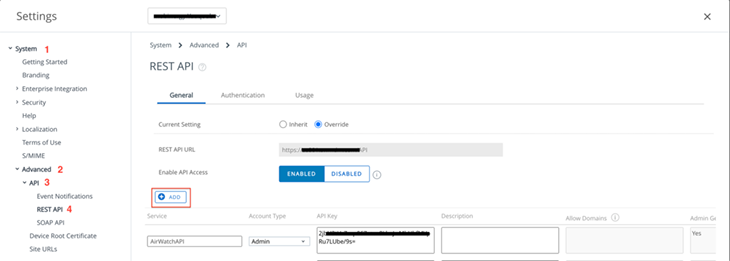

To get the Workspace ONE API key, go to System Settings. You can create a new API key or copy an existing one.

Basic authentication

This type of authentication requires Base64 encoded username and password of an admin account created on a Workspace ONE console with API access.

Follow these steps to create a basic authorization header using PowerShell:

Once complete, you can use the authorization and API key in the request header to perform an API action. The header structure will be similar to the following:

Certificate authentication

This type of authentication provides API access using a self-signed certificate generated for admin users of the Workspace ONE admin console.

Certificate authentication supports two types of authentication schemes:

• CMS: Request message content should be signed with a client certificate using PKCS9 signing.
• CMSURL: Request canonical URI resource encoded using UTF-8 format and signed with client certificate using PKCS9 signing.

The authentication scheme should be part of the authorization header. Also, the format of the authorization header is as follows:

Authorization: CMSURL’<Version> <CREDENTIALS>

• <Version>: information, usually 1.
• <CREDENTIALS>: is the Base64 Encoded data of “canonical URI resource encoded using UTF-8 format” signed with client certificate using PKCS9 signing.

In this tutorial, we will use the CMSURL scheme.

Generate an admin client certificate

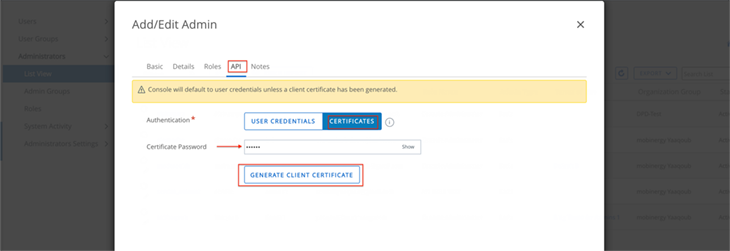

• Log in to the Workspace One UEM Console and go to admin edit mode.

• When the edit modal is open, click on API tab

• Now, export the client certificate.

Create an authorization header using the CMSURL scheme

The following is the PowerShell code to generate the authorization header.

Once complete, you can use the authorization and API key in the request header to perform an API action. The header structure will be similar to the following:

OAuth authentication

This type of authentication is the recommended form of authentication.

It requires a bearer token in the authorization header to authenticate to the API. You will need a client ID and a client secret to generate a token.

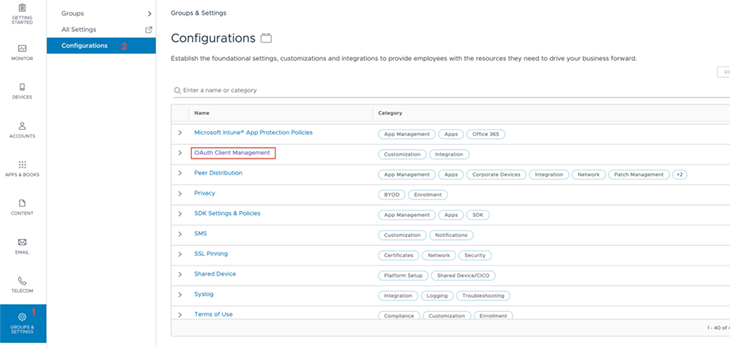

• Go to OAuth Client Management in Workspace ONE.

• Register a new OAuth client.

After saving the client, copy the client ID and client secret and save them in a safe place, as once you close the modal, you cannot retrieve the client secret again.

• Get the access token.

The access token URL depends on your Workspace ONE region. Click here to access a VMware article that lists all access token URLs.

Now, we will demonstrate how to get an access token using PowerShell:

Once complete, you can use the authorization and API key in the request header to perform an API action. The header structure will be similar to the following:

Full source codes with the execution of an API request are in the following GitHub Repository.

Conclusion

OAuth authentication is the recommended method among the different authentication types for your production applications that leverage Workspace ONE APIs.
